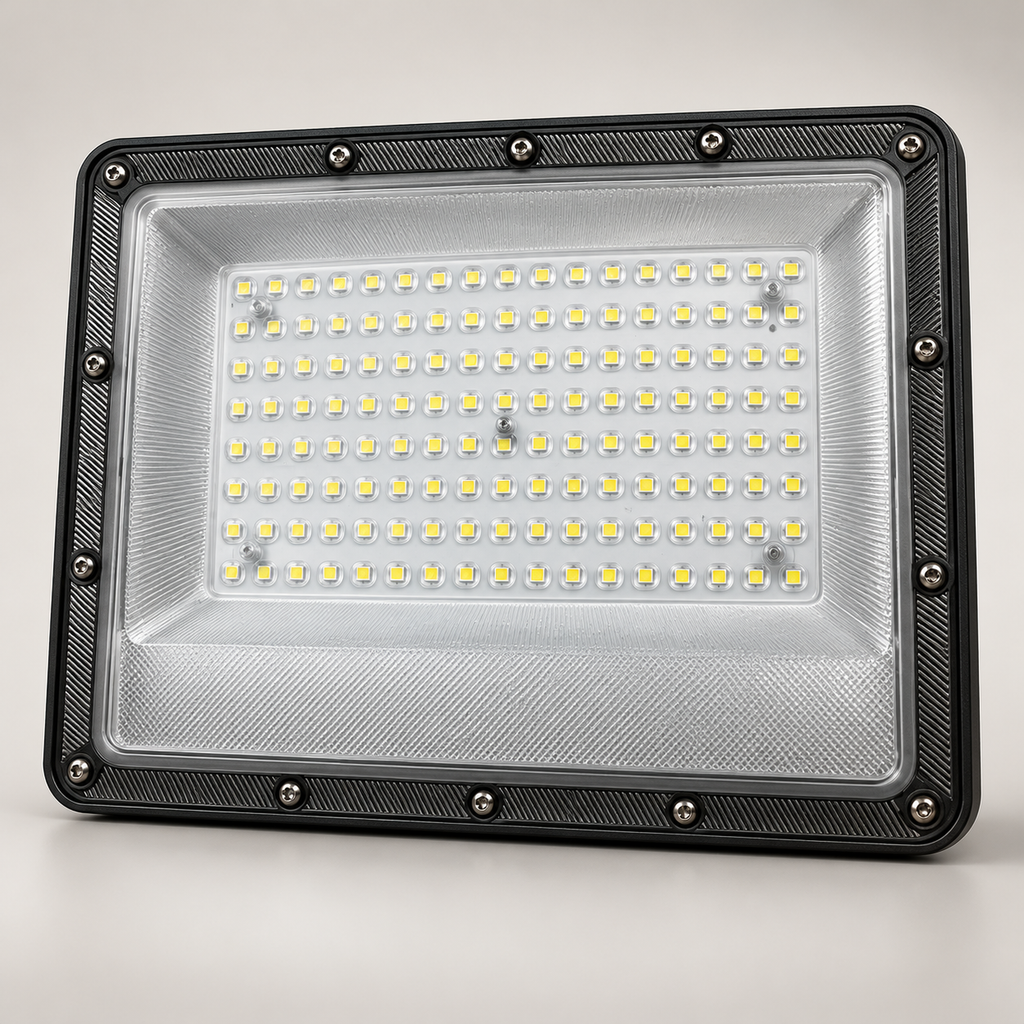

Studio and application images are visualisations based on product references. See the catalogue image and specification table for product details. Floodlight visuals show a reference housing; Model 1 and Model 2 have different sizes and weights.
DOB Flood Light · Model 2
Explore exterior lighting in a lighter housing range. Model 2 offers five options from 30W to 200W, with lower listed weights than Model 1 at every wattage. Compare the dimensions to find your fit.
Contact PIXTER to confirm the price and availability of your selected wattage.
Request pricing & availability ↗Tell us what you want to light, the area size and where it will be installed. We can help you shortlist a suitable option.
Get help choosing ↗Share the product, wattage, quantity, mounting height and delivery city for a bulk supply quotation.
Talk to PIXTER about your requirement ↗An alternative housing, with a clear specification.
The same published wattage and light-output choices in an alternative housing range. Model 2 offers lower listed weights than Model 1 at every wattage, with its own dimension schedule for installation planning.
Why consider this range
- Wattage options: 30W, 50W, 100W, 150W and 200W.
- Specified electrical input: AC 180–440V, with a power factor of 0.9 across the range.
- Published surge ratings: compare the variant-specific ratings below.
- Installation planning: compare housing weight, dimensions, light output and efficacy.
For your space
Compare Model 2 when fixture size and weight matter to your selection. Choose from 30W to 200W and check the dimensions of your chosen wattage.
For business & project buyers
For procurement and repeat installations, compare Model 2 against mounting constraints. Its published output values match Model 1 across the five wattages; specify the housing model clearly in your enquiry.
Choose with confidence
Select wattage for your layout, then check the Model 2 dimensions and weight. Confirm mounting compatibility, weather protection and site conditions before ordering.
Technical specifications
| Power | Surge | Weight (g) | Size (mm) | Flux (lm) | Efficacy (lm/W) |
|---|---|---|---|---|---|
| 30W | 4 kV | 230 | 170 × 148 × 23 | 3071.04 | 101.49 |
| 50W | 6 kV | 300 | 205 × 160 × 23 | 5551.13 | 109.25 |
| 100W | 6 kV | 495 | 260 × 210 × 26 | 11319 | 112.91 |
| 150W | 6 kV | 730 | 320 × 250 × 28 | 17111.19 | 113.99 |
| 200W | 6 kV | 1050 | 370 × 280 × 28 | 24017.78 | 117.84 |
Specifications are taken from the PIXTER catalogue. Input: AC 180–440V. Power factor: 0.9.
Before you order
Confirm pricing, stock availability, colour temperature, beam angle, IP rating, mounting arrangement, warranty and delivery terms for your chosen variant. Light levels and coverage depend on the installation layout. Studio visuals show a reference housing; select Model 1 or Model 2 using the specifications above.
A better fit for your everyday space.
Start with the area you want to light: a driveway, private lane, workshop or covered workspace.
Match the option to your mounting position and space. Compare dimensions, electrical input and installation requirements.
Ask about availability, delivery, mounting hardware and warranty for the option you choose.
Questions before you choose?
Which option should I choose?
Wattage is one part of the selection. Consider area dimensions, mounting height, fixture spacing and the task being lit. Share your site requirements for help shortlisting a model.
Can I enquire for one light or a bulk requirement?
Yes. Select a wattage and send an individual enquiry, or share your quantity and fixture schedule for a business or project quotation.
What should I confirm before placing an order?
Confirm pricing, availability, IP rating, colour temperature, mounting compatibility, warranty and delivery terms for your chosen variant.
How do PIXTER Flood Light Model 1 and Model 2 differ?
Both catalogue ranges list 30W, 50W, 100W, 150W and 200W. Their published housing dimensions and weights differ. Compare the tables at the same wattage and confirm the exact variant’s beam, light output, IP rating and mounting details.
Can I use this floodlight in an exposed outdoor location?
Confirm the environmental and ingress-protection rating for the exact model before selecting an exposed installation. Product imagery does not establish weather resistance. Read the outdoor LED lighting guide.
